SOURCE-CHECKED GRINDER RECORD / U.S. 120V

Acaia Orbit

Checked price$1,600Price checked 2026-08-02
SPECIFICATION RECORDNot a hands-on reviewCATALOG 2026-08-02.1
Check current price Price checked 2026-08-02 · Direct product link. Price and availability may differ.Compare this grinder in a complete setup →I already own this grinder →

DECISION SNAPSHOT

Who this fits—and what it asks you to accept.

Best for
variable-RPM single dosing · connected workflow
Main tradeoff
Grind-by-weight requires a separately purchased Acaia Lunar scale, so the base grinder must not be described as self-contained GBW.

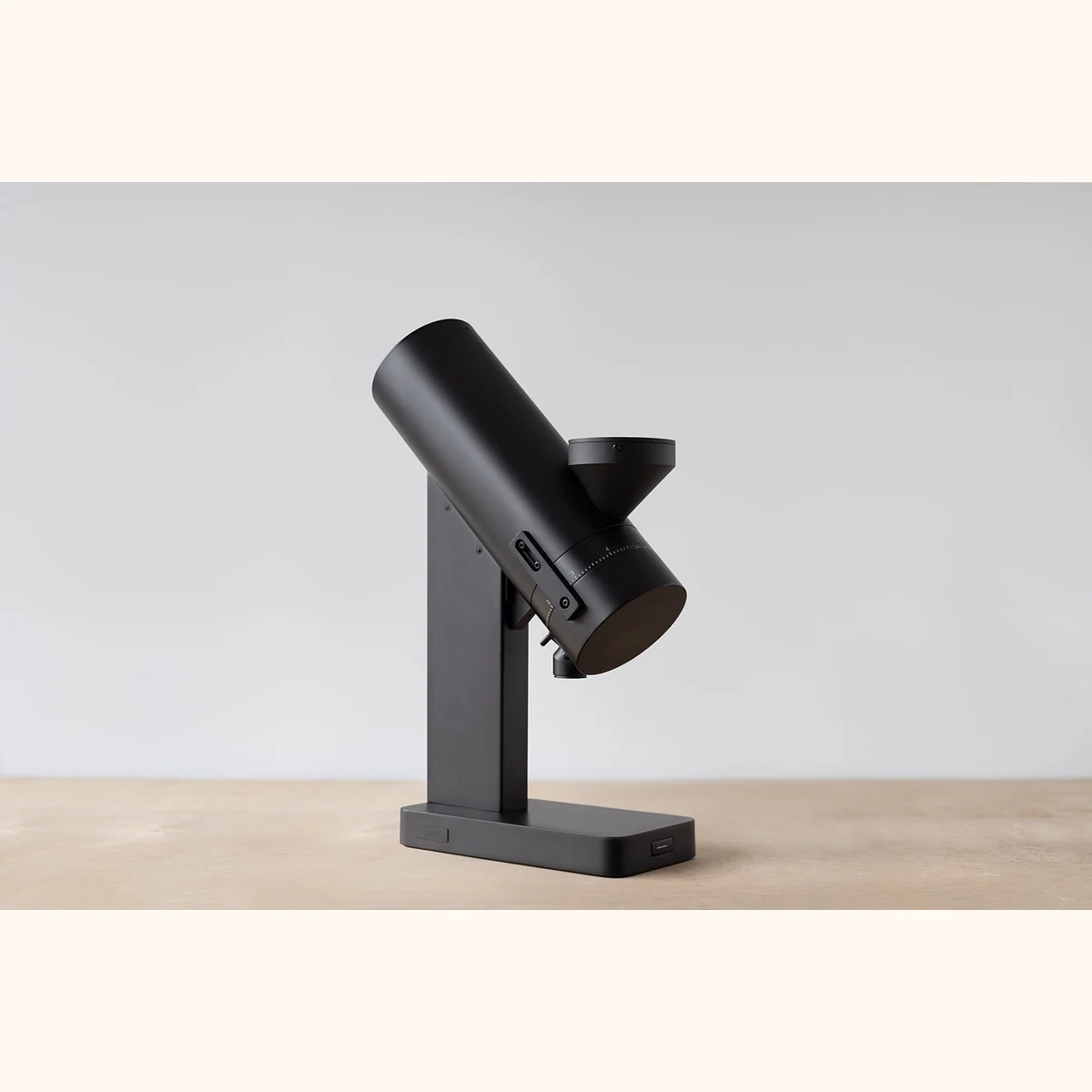

Acaia Orbit espresso grinder

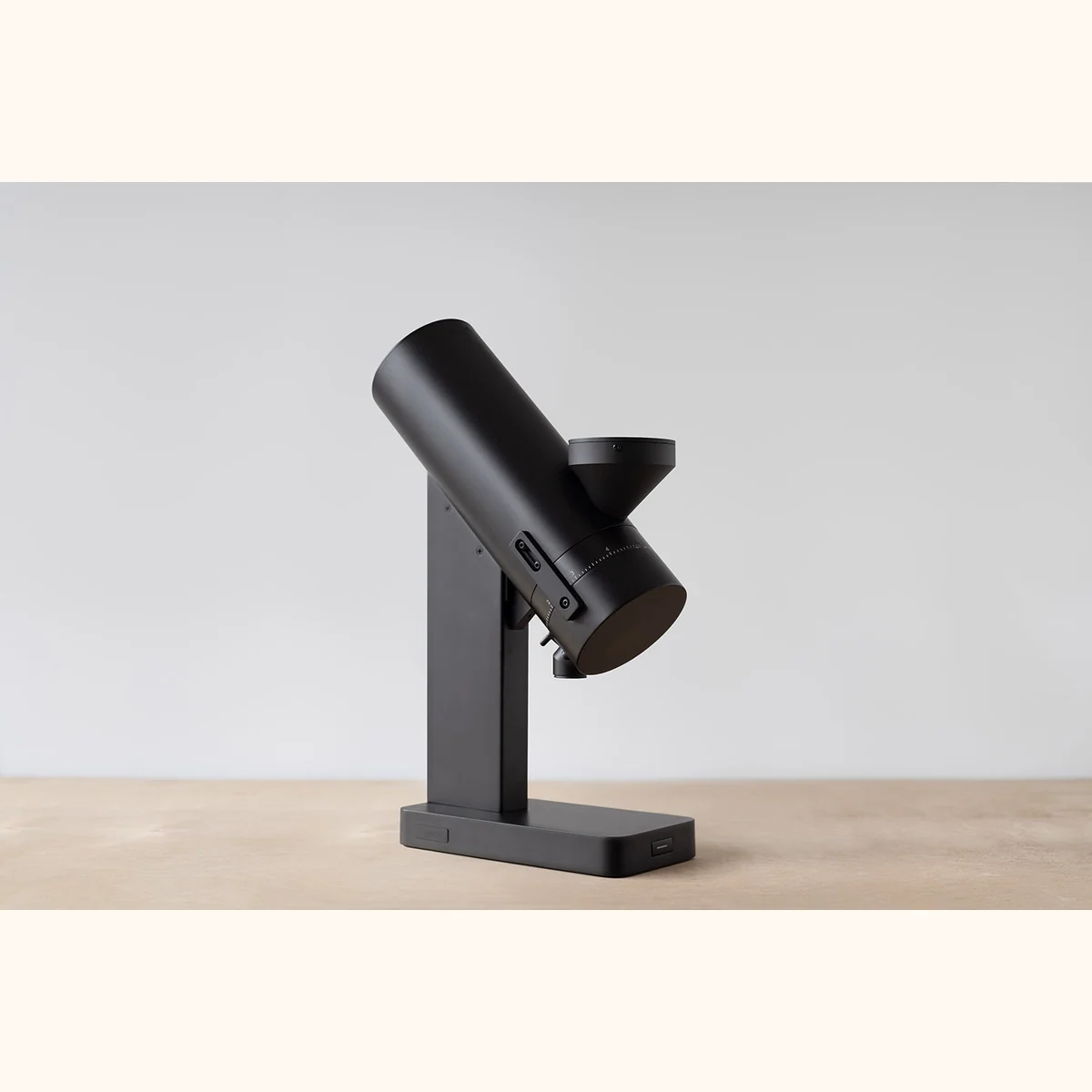

SOURCE-TRACED PRODUCT IMAGEEspresso grinder image published by Acaia, shown for product identification. Provenance is documented; reuse permission is not treated as cleared unless the separate rights ledger says so. Source: Acaia ↗ Rights status: reuse permission needs verification.

FIT & SETUP

What needs to fit before you buy

A quick read of the published footprint, power, access, and workflow boundaries. Unknown is a useful answer here.

SOURCE-CHECKED
U.S. RECORD
Best aligned with
  • variable-RPM single dosing
  • connected workflow
  • optional grind-by-weight

Source checkedCounter footprint

4.25 W × 10.47 D × 15.51 H in

Closed chassis dimensions from the source record.

Acaia · manufacturer · 2026-08-02 ↗

Source checkedOperating clearance

Not confirmed

Leave room for the working parts until a portafilter-in or access measurement is confirmed.

Source checkedPower and circuit

100–240V / 50–60Hz / 200W

Regional electrical wording is taken from the source record; confirm the outlet and branch circuit before purchase.

Acaia · manufacturer · 2026-08-02 ↗

Not confirmedAccess around it

Not confirmed

Hopper, dosing-cup, and adjustment clearance is not source-confirmed.

Editorial fitWorkflow

single dose dosing; wide stepless collar; 600–1500 rpm

Workflow summary comes from the source record; exact handle geometry can affect direct dosing.

Acaia · manufacturer · 2026-08-02 ↗

Source checkedPortafilter path

58mm

Supported transfer sizes do not guarantee fit for every handle shape.

Acaia · manufacturer · 2026-08-02 ↗

Record basis: Acaia checked 2026-08-02. This is a specification record, not a physical fit test.

DECISION RECEIPT

The case for this record

Why it fits

Strongest match for variable-RPM single dosing, connected workflow, optional grind-by-weight.

Main tradeoff

Grind-by-weight requires a separately purchased Acaia Lunar scale, so the base grinder must not be described as self-contained GBW.

Before you click through

AOT009 is distinct from SSP MP and other finish/burr SKUs.

Receipt basis · source record, dated 2026-08-02
Acaia · manufacturer · 2026-08-02 ↗

INDEPENDENT TEST STATUS

Source checked

Manufacturer and retailer evidence only. No independent result is published.

SRCNO LAB RESULT
Read the pre-registered physical protocol →

THE LEDGER

What the source record says

Dimensions
4.25 W × 10.47 D × 15.51 H in
Voltage
100–240V / 50–60Hz / 200W
Warranty
2 years in the U.S.
Burrs
64mm Mazzer 33M flat
Adjustment
Wide stepless collar; 600–1500 RPM
Workflow
single dose
Portafilters
58mm

TRADEOFF

The compromise to price in

Grind-by-weight requires a separately purchased Acaia Lunar scale, so the base grinder must not be described as self-contained GBW.

FIELD-LEVEL EVIDENCE

Claim ledger

manufacturerBurrs

64mm Mazzer 33M flat

Verify at Acaia ↗
manufacturerGBW dependency

Requires a separate Acaia Lunar scale

Verify at Acaia ↗

KNOWN LIMITATIONS

What the record cannot prove

  • AOT009 is distinct from SSP MP and other finish/burr SKUs.
  • The included cup is 58mm; other basket sizes are not claimed.

Published specifications do not prove taste, noise, durability, thermal stability, mess, or real-world speed. Those require a documented physical test.

SOURCE LEDGER

Inspect the evidence

  1. Orbit product pageAcaia · manufacturer · checked 2026-08-02

Conflicting data? Send a correction.

OWNERSHIP AND PRACTICAL RESOURCES

Guides and documentation

  1. MANUALAcaia · verified 2026-08-02Orbit official manualScope: Exact setup, RPM, cleaning, app, and Lunar-integration instructions.
  2. SITE GUIDEEspresso Receipt · practical guideHow to dial in espressoScope: Use dose, yield, time, taste, and flow without chasing a universal grinder number.
  3. SITE GUIDEEspresso Receipt · practical guideEspresso grind size chartScope: Translate adjustment systems into a safe starting process for espresso.
  4. SITE GUIDEEspresso Receipt · practical guideCoffee grinders for espressoScope: Compare adjustment, burr, dosing, and retention workflows before choosing a grinder.

SRC / THIRD-PARTY OPINION — NOT PRODUCED BY THIS SITE

Third-party review index

  1. VIDEOLamarsaAcaia Orbit Performance ReviewScope: Hands-on performance review of variable RPM, single dosing, and the connected workflow.
  2. WRITTENitsxrisAcaia Orbit Three-Month ReviewScope: Three-month ownership review of workflow, static, app controls, and Lunar integration.
  3. WRITTENKaffeemacherAcaia Orbit Independent Lab ReviewScope: Protocol-led independent lab review covering retention, sound, particles, and cup results.

These are independently produced third-party reviews, linked here for context. Espresso Receipt did not produce, commission, or endorse them, and does not adopt their conclusions — the opinions belong to their creators. Links last verified 2026-08-02.
