Fit and setup
Check this first
Check the stored size, power needs, space to use it, and daily routine.
U.S. product
- brew and steam at the same time
- several drinks per session
- common 58 mm coffee tools
Stored size
11.125 W × 12.375 D × 14.75 H in (28.3 × 31.4 × 37.5 cm, converted)
Published body size. Leave extra room to use, refill, connect, and clean it.
Space needed to use it
16.5 in (41.9 cm, converted) with portafilter
This measurement includes the portafilter, the handled tool that holds the filter basket and locks into the machine.
Power and circuit
120V, 2000W; 20A circuit required
A plug adapter cannot make a lower-rated circuit safe.
Daily routine
Use a separate grinder. Use the steam wand to steam the milk yourself.
Published details suggest this daily-use routine. They do not measure speed or ease.
Portafilter fit
58mm
A portafilter is the handled tool that holds the filter basket. Accessories and handle clearance can still vary.
We could not confirm thisRoom to refill and clean
We could not confirm this
We could not confirm the room needed to refill the reservoir, use the steam wand, or remove the drip tray.
How we checked this
What the evidence labels mean
- Source checked
- A cited source stated this fact when Espresso Receipt checked it. This is not a physical product test.
- Our summary
- This is our summary of published product details. It is not a hands-on result.
- We could not confirm this
- The available sources do not establish one reliable answer.
Main source: Ascaso USA. Source checked September 16, 2026. This page lists published product details. It is not a physical fit test.
Counter fit
Will it fit your space?

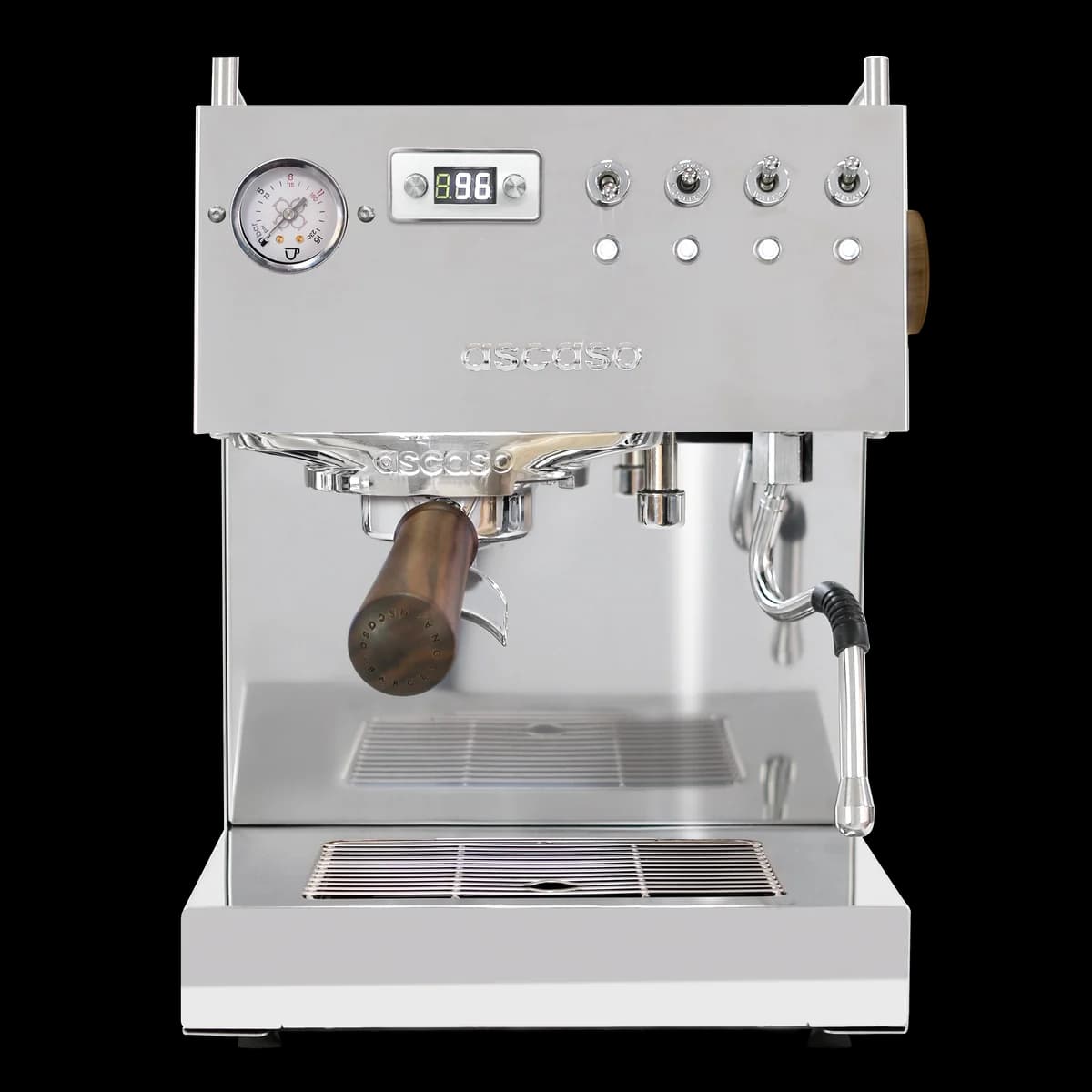

We check the Ascaso Steel Duo PID V2.5 against its published size: 11.125 × 16.5 × 14.75 in (width × depth in use × height). The depth is the maker's space needed while the machine is in use.
Enter a height, depth, or width to check this machine.
Daily care and maintenance
These daily and scheduled steps can help keep the Steel Duo PID V2.5 safe and working. Follow the manufacturer manual if it gives different instructions.
Read the manufacturer manual before startup. Identify the DUO 120VAC variant. Place the machine outside a cabinet. Do not operate it inside a cabinet or similar enclosure.
Before first power-on · For this modelFollow the Steel / Steel PID manual’s user cleaning and maintenance steps. This record does not add a calendar interval.
As directed by the manual · For this modelThe manual sends problems beyond owner maintenance to the distributor. This card does not authorize owner repair.
When a problem needs service · For this modelThe family manual identifies a DUO 120 V alternating current (120VAC) variant rated at 2000 W and 20 A (20 amps). A plug adapter cannot make a lower-rated circuit safe. Check the model nameplate. If you cannot confirm the circuit rating, ask a qualified electrician. Do not operate the machine inside a cabinet or similar enclosure.
Safety note · For this modelManual, definitions, and limits for this model
Manual: Steel / Steel PID family manual; DUO 120VAC variant for the Steel Duo PID V2.5. Follow the manufacturer manual for operation, maintenance, and safety.
The manual revision is the exact manual edition named above. A model identifies the product. A SKU is the exact seller or maker product code. Match all three to your machine before you follow these instructions.
The nameplate is the label on the machine that lists its exact model and electrical ratings. Match the outlet and manual to that label.
A 20 A circuit is household wiring rated for 20 amps. A plug adapter does not change the circuit rating.
- Model, SKU, and manual revision limit: Family manual must be matched to current U.S. Steel Duo PID V2.5 color/SKU; product page identifies a separate current variant.
- Match the manual’s dimension order and family scope to the current U.S. catalog variant.
- This record does not give a filter or model-specific descaling interval.
- A qualified person must confirm whether the electrical installation is suitable for your site.
What we checked
Product details we checked
- Stored size
- 11.125 W × 12.375 D × 14.75 H in (28.3 × 31.4 × 37.5 cm, converted) Compare sizes
- Voltage
- 120V, 2000W; 20A circuit required
- Warranty
- 12 months machine; 5 years thermoblocks/groups
- Heating
- Dual thermoblocks
- Milk
- Manual milk: you steam the milk yourself.
- Controls
- Manual controls: you set the shot yourself.
- Grinder needed
- Separate grinder required
- Portafilter
- 58mm
- Warm-up
- 3:30 (manufacturer claim)
Pair it with a grinder
Grinders listed for 58 mm portafilters
The Ascaso Steel Duo PID V2.5 has no built-in grinder. Our records list these 13 grinders as working with 58 mm portafilters. Some hold the portafilter while you grind. Others grind into a dosing cup that you pour from. Check how each one doses with the maker, and check the fit against the exact shape of your handle. The setup estimate adds this machine, the grinder, and $90 for basic setup items from our dated price checks. It is not a current quote.
| Grinder | Price | Setup estimate | Dosing |
|---|---|---|---|
| Baratza Encore ESP | $199.95Price checked October 20, 2026 | $2,384.95 | Hopper |
| Breville Smart Grinder Pro | $199.95Price checked October 20, 2026 | $2,384.95 | Hopper |
| Fellow Opus 2 | $199.95Price checked October 20, 2026 | $2,384.95 | Single dose |
| MiiCoffee DF54 | $229Price checked October 20, 2026 | $2,414 | Single dose |
| MiiCoffee DF64 II | $399Price checked October 20, 2026 | $2,584 | Single dose |
| Baratza Sette 270 | $399.95Price checked October 20, 2026 | $2,584.95 | Hopper |
| Eureka Mignon Zero 65 AP | $499Dated price snapshot from September 16, 2026 | $2,684 | Single dose |
| Baratza Vario+ | $529.95Dated price snapshot from September 16, 2026 | $2,714.95 | Hopper |
| Eureka Mignon Specialità | $549Price checked October 20, 2026 | $2,734 | Hopper |
| Mahlkönig X54 Allround Home | $599Price checked October 20, 2026 | $2,784 | Hopper |
| Eureka Mignon Libra | $699Price checked October 20, 2026 | $2,884 | Hopper |
| Mazzer Philos I200D | $1,595Price checked October 20, 2026 | $3,780 | Single dose |
| Acaia Orbit | $1,600Price checked October 20, 2026 | $3,785 | Single dose |
Compare the four lowest-priced grinders side by side →See every grinder we track →
Plain definitions for product terms
- Portafilter
- The handled tool that holds the filter basket and locks into the machine.
- PID
- A temperature-control system that helps hold a set temperature.
- Thermoblock
- A named machine heating design. The name alone does not prove better coffee.
Facts and sources
Facts and sources
20-amp circuit and NEMA 5-20 outlet required
See source: Ascaso USA ↗(opens in a new tab)16.5 in with portafilter
See source: Ascaso USA ↗(opens in a new tab)More things to check first
- Check the model nameplate.
- If you cannot confirm the circuit rating, ask a qualified electrician.
- Do not operate the machine inside a cabinet or similar enclosure.
Sources
Sources used
See a problem with a product detail? Send a correction.
Product details checked through 2026-09-16. Product details and price checks can change.
